Chandler sits on the alluvial fan deposits of the Santa Cruz River basin. These soils are often loose and dry, with apparent high strength at low moisture content. A sudden wetting event — from a broken main or seasonal rain — can trigger rapid volume loss. We perform collapsible soil evaluation in Chandler to quantify this collapse potential before foundation design begins. The test follows ASTM D5333, measuring void ratio change at a controlled surcharge. For deep profiles we combine this with resistivity surveys to map moisture-sensitive layers. Without this data, post-construction settlement can exceed 5 cm in a single wet cycle.
A metastable soil can lose 15% of its volume within hours of wetting. Chandler's alluvial fans are classic candidates for this failure mode.
Methodology and scope
- Collapse index measured per ASTM D5333
- Wetting under load at two stress levels
- Correction for pre-wetting if site is irrigated
Local considerations
A 4-story apartment complex near Chandler Boulevard settled 9 cm after a sprinkler line leak. The owner had skipped the collapsible soil evaluation. The footing pad was designed for 150 kPa bearing, which the dry soil could support. Once water reached the foundation zone, the metastable structure collapsed. Repair involved underpinning with 12 micropiles at a cost six times the original study. We now flag all Chandler sites with pre-1960s irrigation history as high-priority for this test.
Applicable standards
ASTM D5333-03 – Standard Test Method for Measurement of Collapse Potential of Soils, ASTM D2487 – Unified Soil Classification System, IBC 2021 Section 1803 – Geotechnical Investigation Requirements
Associated technical services
Field Block Sampling
Hand-carved undisturbed blocks from test pits or trenches. Each block is wrapped, waxed, and transported to the lab within 24 hours. This preserves the natural void ratio and cementation bonds.

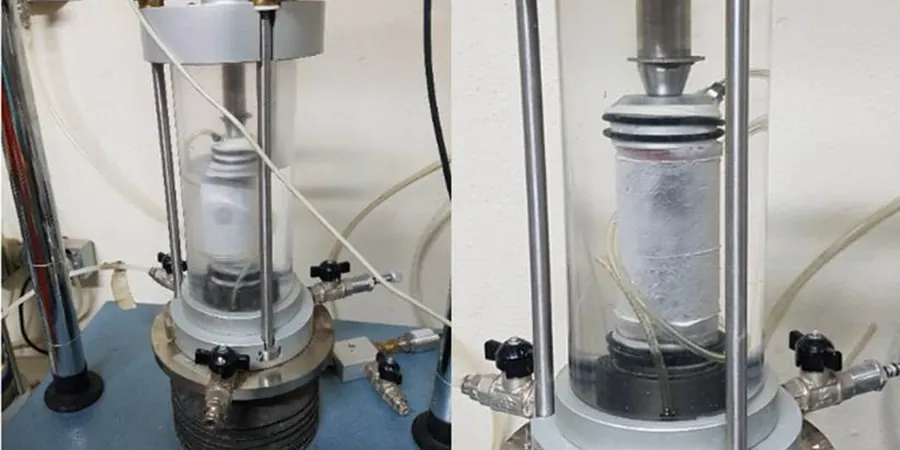

Single-Oedometer Collapse Test
Load the specimen to field stress, then flood. The collapse index is read directly. We run duplicate tests at two confining pressures to cover the design range.
Double-Oedometer Verification
Two identical specimens — one loaded dry, one flooded from the start. The difference in compression curves isolates the collapse component. Used when collapse is borderline (I_c near 1%).
Typical parameters
Frequently asked questions
What is collapsible soil and why does it matter in Chandler?
Collapsible soil is a loose, dry deposit that appears strong until wetted. Chandler's alluvial fan soils contain silt and fine sand bridged by clay or soluble salts. When water infiltrates, the bridges dissolve and the soil structure collapses. This can cause sudden differential settlement of 5 to 15 cm under building loads.
How much does a collapsible soil evaluation cost in Chandler?
The typical cost ranges from US$930 to US$2,470 depending on the number of test points and the depth of sampling. The price includes undisturbed sampling, one single-oedometer test per depth, and a report with collapse potential classification. For projects requiring double-oedometer verification the cost increases by about US$400 per test.
What ASTM standard governs collapsible soil testing?
The primary standard is ASTM D5333-03, 'Standard Test Method for Measurement of Collapse Potential of Soils.' It defines the single-oedometer procedure, the collapse index calculation, and the criteria for classifying collapse potential as slight, moderate, or severe.
Can I build on collapsible soil without remediation?
It depends on the collapse index and the building type. For light structures with shallow footings, pre-wetting and re-compaction may suffice. For heavy or sensitive structures, deep foundations bearing below the collapsible zone — typically below 8 m in Chandler — are recommended. Always consult the geotechnical report before starting construction.
