Chandler sits on deep alluvial deposits from the Gila River basin, with silty sands and clays extending over 100 feet in many areas. The groundwater table here typically lies 50 to 80 feet below grade, which directly influences how piles transfer loads. For most projects, we run a pile skin friction vs. end bearing analysis to separate the shaft resistance from the point bearing component. This split is critical because the sandy layers near the surface provide decent friction, while the denser strata at depth carry the end load. We combine SPT blow counts from boreholes with lab index tests to model each layer's contribution. Before finalizing the foundation design, we often cross-check results with a resistivity survey to map soil variability across the site. The analysis gives engineers clear numbers for each pile's working load in Chandler's variable ground.
Separating shaft friction from end bearing is the only way to size piles safely in Chandler's stratified alluvial soils.
Methodology and scope
Local considerations
The dry climate in Chandler means soils are often unsaturated near the surface, but seasonal monsoon rains can temporarily raise the water table by 10 to 15 feet. That shift reduces effective stress on the pile shaft, lowering the available skin friction. If the end bearing layer is a loose sand or silt, it can lose capacity under cyclic loading from foundation vibrations. We also see risk from collapsible soils in the eastern parts of the city, where sudden wetting causes a drop in toe resistance. Our analysis flags these zones early and recommends deeper pile tips or a dynamic compaction treatment before driving. Ignoring the friction-versus-bearing split in Chandler can lead to settlement differences of several inches between piles.
Applicable standards
ASTM D1143 (static load test for piles), ASTM D4945 (high-strain dynamic testing), IBC 2021 Chapter 18 (foundation design), ASCE 7-22 (load combinations and factors)
Associated technical services
Borehole Logging & SPT Program
Drill to refusal depth with continuous SPT sampling every 5 feet. We log soil type, moisture, and blow counts for each stratum to feed the friction and bearing calculations.
Laboratory Strength Testing
Triaxial CU tests on cohesive samples and direct shear on sands. Results give cohesion and friction angle values needed for alpha and beta methods in the analysis.
Load Test Interpretation
We analyze static compression or Osterberg cell test data to separate shaft resistance from toe load. The output includes load-movement curves and Davisson failure criteria.
Typical parameters
Frequently asked questions
What is the difference between skin friction and end bearing in piles?

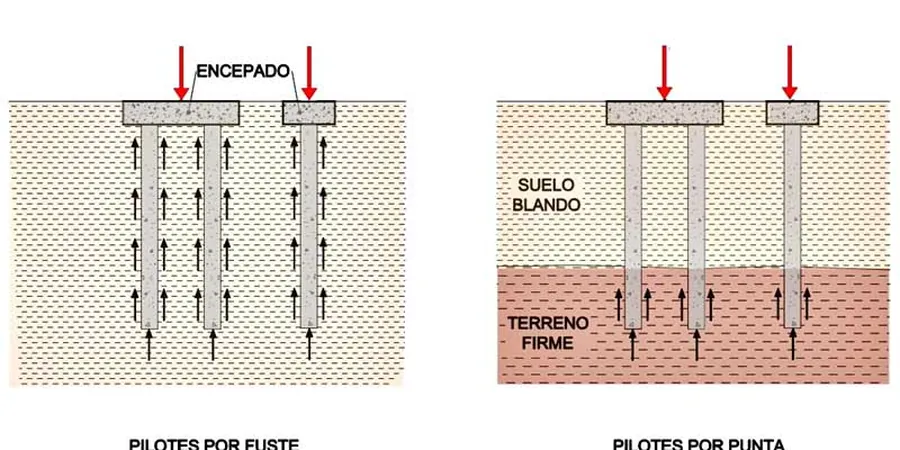

Skin friction is the load carried by the soil along the pile shaft through adhesion or friction. End bearing is the load transferred at the pile tip to a competent bearing stratum. A pile skin friction vs. end bearing analysis calculates both components separately to size the foundation correctly.
How does Chandler's soil affect the skin-to-bearing ratio?
Chandler's alluvial profile has silty sands near the surface that provide moderate friction, and denser cemented sands or gravels at depth that carry most of the end load. The ratio typically shifts toward end bearing as depth increases, but caliche layers can create misleadingly high friction readings.
What methods do you use to estimate skin friction?
We apply the alpha method for clays (total stress) and the beta method for sands (effective stress). Both rely on SPT N-values and laboratory strength tests. For Chandler's mixed soils, we often run both methods and use the more conservative result.
When should I request a pile load test after the analysis?
A static load test is recommended when the design relies heavily on end bearing in a variable layer, or when the factored load exceeds 200 tons per pile. It validates the friction and bearing values assumed in the analysis and is required by IBC for high-capacity piles.
How much does a pile skin friction vs. end bearing analysis cost in Chandler?
The typical cost ranges between US$1,010 and US$2,740 for a standard residential or small commercial project. This includes field SPT, lab testing, and the engineering report. Larger projects with load tests cost more. Contact us for a quote specific to your site.
