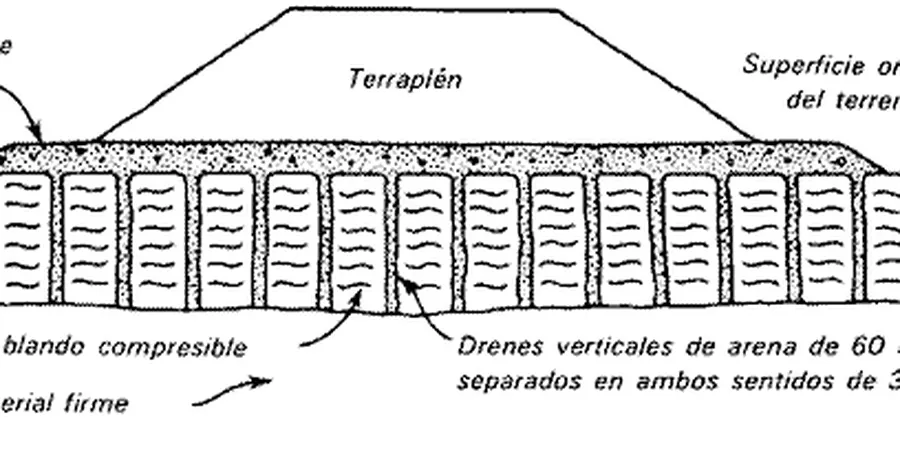

Chandler's semi-arid climate hides a tricky subsurface. The city sits on deep alluvial deposits from the Santa Cruz River system, with clay and silt layers that retain moisture even in dry months. These fine-grained soils are prone to long-term consolidation under load. Prefabricated vertical drain (PVD) design accelerates settlement, reducing wait times for slab-on-grade and embankment projects. Without PVDs, post-construction settlement can reach inches in Chandler. We pair our drain layouts with deep soil mixing to treat the most compressible horizons. Our designs follow FHWA guidelines and account for the area's variable groundwater depth, which can drop from 20 ft to over 100 ft depending on the neighborhood.
In Chandler's alluvial clays, a 1.5 m PVD spacing can cut preload time by 70% compared to vertical drainage alone.
Methodology and scope
- Mandrel cross-section and withdrawal speed to minimize smearing
- Equivalent drain diameter based on band width and thickness
- Horizontal coefficient of consolidation from field dissipation tests
- Filter fabric permittivity of at least 0.1 s⁻¹
Local considerations
Chandler's geology includes expansive clay layers within the upper 10 m of the profile. These clays have plasticity indices above 40. When wetted, they swell and lose shear strength. A poorly designed PVD system can actually accelerate water ingress into these layers, worsening heave. The risk is real. We mitigate it by placing a drainage blanket with a geotextile separator above the PVDs, and by specifying filter fabrics with fines retention criteria per ASTM D4751. In addition, the area lies in Seismic Zone D (IBC), so we check for seismically induced settlement after consolidation. A PVD design without considering these local soil behavior risks is incomplete.
Applicable standards
ASTM D6918 (PVD discharge capacity test), ASTM D4719 (DMT dissipation for Ch evaluation), FHWA-NHI-16-072 (Prefabricated Vertical Drains), IBC 2021 Chapter 18 (Seismic soil-structure interaction)
Associated technical services
Radial Consolidation Design
Full 2D and axisymmetric analysis using Barron and Hansbo solutions to determine optimal drain spacing, length, and pattern. We incorporate field CPTu and DMT data to refine the horizontal coefficient of consolidation (Ch). Deliverables include consolidation curves, post-construction settlement estimates, and installation specifications.
Performance Monitoring & Verification
We install settlement plates, piezometers, and inclinometers to track pore pressure dissipation and surface settlement during preload. Our team processes data in real time and adjusts the surcharge schedule if needed. We provide a signed verification report confirming that 90% consolidation has been achieved before load removal.
Typical parameters
Frequently asked questions
How long does a typical PVD preload take in Chandler clay?
For 10-15 m of clay with Ch around 2 m²/year, a 1.5 m triangular spacing achieves 90% consolidation in 5-8 months. Without PVDs, that same time frame would be 2-3 years.
What is the typical cost for PVD design and installation in Chandler?
Design fees range from US$820 to US$2.720 depending on site complexity and number of monitoring points. Installation costs are additional and vary with depth and access.
Can PVDs be used on small residential lots in Chandler?
Yes, but only if the compressible layer is thicker than 3 m. For shallow fill, a simple surcharge without drains is often more cost-effective. We evaluate on a case-by-case basis.
What happens if the smear zone is underestimated?
A larger smear zone reduces the effective drainage path. If ignored, the actual consolidation time can be 30-50% longer than predicted. We always run a sensitivity analysis with ds/dw from 2.0 to 3.5.
Do you include seismic settlement checks in the PVD design?
Absolutely. Chandler is in Seismic Zone D. We assess cyclic softening of the soft clay after consolidation using the simplified procedure from Idriss & Boulanger (2008). If needed, we add wick drains with higher discharge capacity to handle earthquake-induced pore pressure.
