Chandler sits on deep alluvial deposits from the Santa Cruz River system, with soils ranging from silty sands to clayey gravels. The water table in the southern part of the city can sit as shallow as 10 feet after wet winters, while the northern areas remain dry for decades. For roads, that means drainage design must account for both seasonal perched water and long-term capillary rise. A geotechnical road drainage study identifies the critical zones where water weakens the subgrade, then prescribes solutions like subdrains, permeable bases, or edge drains. We combine field permeability testing with laboratory index tests — for example, running the ensayo CBR on soaked samples to simulate worst-case saturation — before recommending any drainage layer thickness or outlet spacing.
In Chandler's alluvial soils, a 2% increase in subgrade moisture can cut CBR by half — drainage design is not optional.
Methodology and scope
Key parameters we evaluate include:
- Field permeability (k) in ft/day — critical for drain spacing
- Atterberg limits (ASTM D4318) to assess shrink-swell potential under wetting
- Modified Proctor (ASTM D1557) for optimum moisture targets during compaction
- Soil classification per USCS (ASTM D2487) to identify frost-susceptible silts
Local considerations

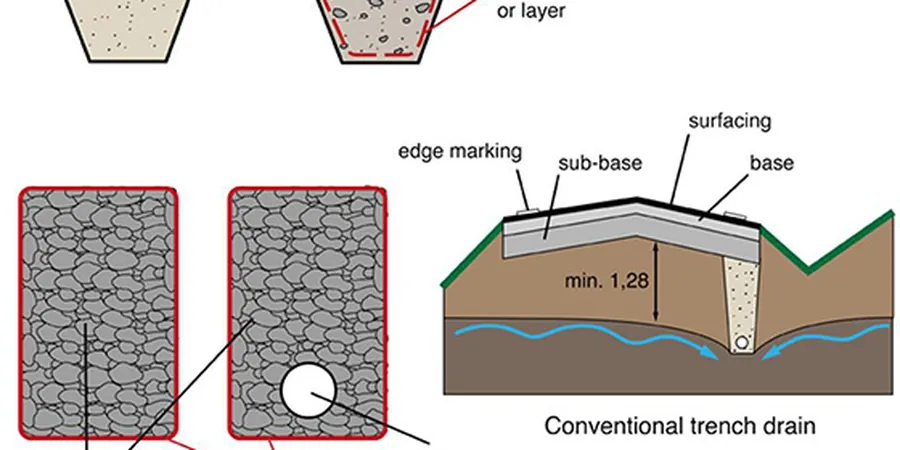

The difference between north Chandler (coarse sands, deep water table) and south Chandler (silty clays, shallow water) is night and day for road drainage. In the south, we have seen pavements fail within 18 months because the granular base became saturated from a high water table that nobody mapped. The risk is not just structural — trapped water under asphalt accelerates oxidation and raveling. A proper geotechnical road drainage study identifies these zones early, so you can install French drains or daylight the subbase before placing the first lift of asphalt. Ignoring that boundary can turn a $200,000 road into a $400,000 repair.
Explanatory video
Applicable standards
ASTM D2434 (Permeability of Granular Soils), AASHTO T-88 (Particle Size Analysis), ASTM D1883 (CBR for compacted soils), FHWA HEC-22 (Urban Drainage Design), ASTM D3385 (Infiltration Rate of Soils in Field)
Associated technical services
Subsurface Drainage Design
Sizing and layout of perforated pipes, gravel blankets, and edge drains based on measured permeability and water table data. Includes hydraulic gradient calculations for outlet placement.
Permeable Base Evaluation
Selection of open-graded aggregates and geotextile separators to allow lateral drainage while preventing subgrade intrusion. We run CBR and permeability tests on candidate materials.
Water Table Monitoring & Mitigation
Installation of piezometers and monitoring wells for seasonal trend analysis. Recommendations for dewatering or passive relief systems when the water table threatens the pavement structure.
Typical parameters
Frequently asked questions
Why is geotechnical road drainage important in Chandler specifically?
Chandler's alluvial soils often have a shallow water table in the southern half of the city, and the lean clays lose strength quickly when wet. Without a drainage study, you risk premature pavement failure from trapped moisture — something we see frequently in subdivisions built before 2010.
What is the typical cost range for a road drainage study in Chandler?
For a standard residential street segment (500–1,000 ft), the study typically costs between US$730 and US$2,540 depending on the number of borings, permeability tests, and water table monitoring required. Larger arterial roads with multiple layers cost more.
How long does the field investigation take?
A typical investigation for a one-mile stretch takes 3 to 5 days for drilling and in-situ testing, plus 7 to 10 days for lab analysis and report preparation. We can fast-track to 5 business days if scheduling allows.
