Too many contractors in Chandler assume that a shallow footing will work just because the desert crust looks firm. Below that dry crust, the natural soils are often loose sands and silty clays with high compressibility. We have seen warehouse slabs settle over 4 inches within two years because nobody checked the deeper layers. Stone column design solves this by installing dense granular columns that transfer loads to stiffer strata and accelerate consolidation. Before you pour a slab on grade, pair the stone column design with a drainage geotechnical study to confirm that groundwater fluctuations won't soften the improved zone.
Stone columns reduce settlement in Chandler's alluvial sands by 40-60% when designed with the correct replacement ratio and column spacing.
Methodology and scope
Local considerations
Chandler's population jumped from 176,000 in 2000 to over 280,000 today, pushing development onto parcels with historically poor soil conditions. The 1892 earthquake near the Salt River valley is a reminder that this region is seismically active, even if events are rare. Under strong shaking, loose saturated sands in the area can undergo partial liquefaction. A stone column design that does not include a check for cyclic softening will leave the project vulnerable. We always run a site-specific seismic settlement analysis using Youd-Idriss (2001) procedures before finalizing column spacing.
Applicable standards
ASCE 7-22 (Seismic Load Provisions, incl. site class and liquefaction), IBC 2021 (Chapter 18 – Soils and Foundations), ASTM D1586-18 (Standard Penetration Test for soil profiling), FHWA NHI-05-037 (Design and Construction of Stone Columns)
Associated technical services

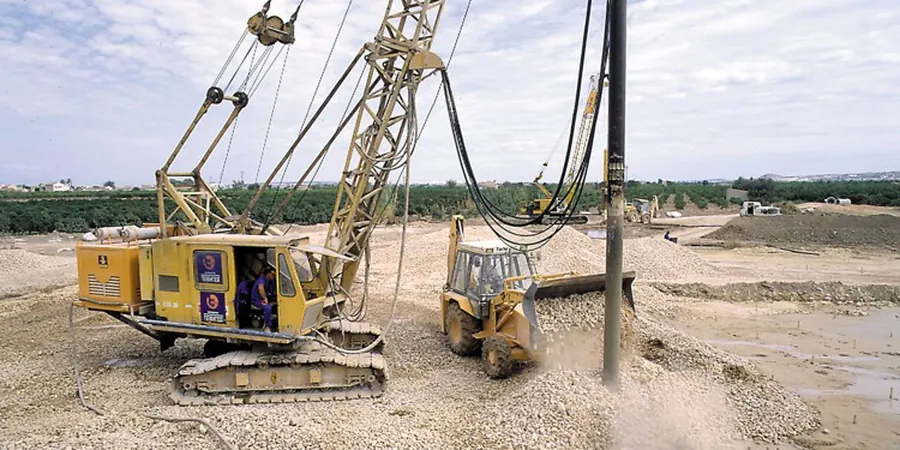

Vibro-Replacement Stone Column Installation
Full-depth installation using a vibratory probe that densifies the soil and backfills with graded stone. Suitable for silty sands and low-plasticity clays up to 12 m depth.
Load Test Verification (PLT / CPD)
Plate load tests and column penetration tests to verify the achieved modulus and bearing capacity. We design the test grid based on project risk and column spacing.
Seismic Settlement Analysis
Post-improvement cyclic settlement check using Youd-Idriss (2001) and ASCE 7 site class correction. We confirm that the stone column grid reduces liquefaction potential to acceptable levels.
Pre-Construction Soil Investigation
SPT borings, CPT soundings, and lab classification (ASTM D2487) to define the stratigraphy and design parameters. We target a minimum of one boring per 2,000 m² for stone column projects.
Typical parameters
Frequently asked questions
How deep can stone columns be installed in Chandler?
Standard vibro-replacement equipment reaches depths up to 12 m (40 ft) in Chandler's alluvial soils. Deeper treatments require a high-energy vibrator or pre-drilling in dense layers. We typically limit column depth to the top of a competent stratum with SPT N-values above 30 blows/ft.
What is the typical cost range for stone column design and installation in Chandler?
For a typical commercial project in Chandler, the total cost per column including design, material, and installation ranges between US$1.400 and US$5.820, depending on column diameter, depth, and site access. A full design package with settlement analysis adds 15-20% to the base cost.
Can stone columns be used on sites with shallow groundwater in Chandler?
Yes. Stone columns actually perform better in saturated soils because the vibratory probe displaces water upward during installation, reducing pore pressure. We just need to account for the higher in-situ water content when selecting the stone gradation to avoid washout. A drainage plan is recommended if the water table is within 3 ft of the surface.
What replacement ratio do you recommend for Chandler's typical silty sands?
For native silty sands with SPT N-values between 4 and 12, we typically design a replacement ratio of 20% to 30%. This achieves a post-improvement bearing capacity of 200-300 kPa (4,000-6,000 psf) and limits total settlement to under 1 inch in five years. The exact ratio is fine-tuned after the CPT or SPT campaign.
How long does a stone column project take from design to completion?
A typical design phase in Chandler takes 2 to 3 weeks, including soil investigation and settlement modeling. Installation for a 10,000 m² site with columns spaced 2.5 m apart runs about 3 to 5 weeks, depending on weather and access. We can mobilize within 10 days of design approval.
