Chandler sits at roughly 1,200 feet above sea level on the alluvial fan of the Salt River, where the water table has historically fluctuated with irrigation and monsoon recharge. That shallow groundwater combined with loose, silty sands from the ancestral river deposits makes soil liquefaction analysis in Chandler a non-negotiable step for projects within the 100-year floodplain or near the Queen Creek Wash. Our lab applies the NCEER (Youd-Idriss 2001) simplified procedure using SPT N-values corrected for energy ratio and overburden, paired with cyclic triaxial testing on reconstituted samples when the fines content exceeds 15 percent. Before we run the liquefaction triggering calculations, we also perform a georradar GPR survey to map shallow stratigraphy and locate any paleochannels that could concentrate seepage during an earthquake.

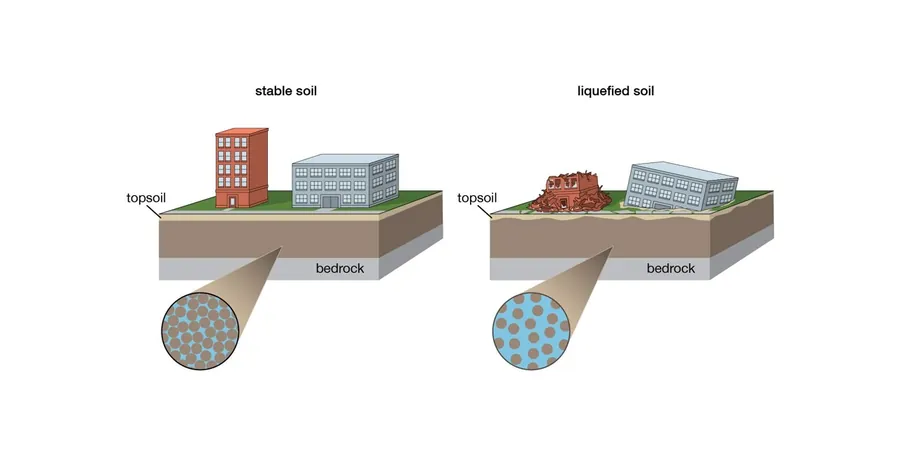

In Chandler, loose silty sands above a shallow water table create the classic recipe for lateral spreading and settlement during a seismic event.
Methodology and scope
Local considerations
Chandler’s semi-arid climate creates a deceptive surface: hard, dry crust over loose, saturated sands only a few feet down. Monsoon storms can raise the water table several feet in days, leaving the subsurface far wetter than the cracked ground suggests. If you assume dry conditions and skip the soil liquefaction analysis in Chandler, you risk differential settlement of 6 to 12 inches under moderate shaking from the San Andreas fault zone or a local blind thrust. That kind of movement snaps utility lines, racks building frames, and cracks slabs beyond repair. We have seen it happen on a retail warehouse near the 202 loop where no cyclic testing was done. Our analysis flags those zones before concrete is poured.
Applicable standards
NCEER/Youd-Idriss 2001 (SPT-based liquefaction triggering), ASCE 7-22 Section 11.8.3 (site class and liquefaction hazard), ASTM D1586-18 (Standard Test Method for Standard Penetration Test)
Associated technical services
SPT-Based Liquefaction Triggering
Boreholes with automatic hammer SPT, energy correction, fines adjustment, and factor of safety calculation per NCEER procedure.
Cyclic Triaxial & Simple Shear Testing
Laboratory cyclic triaxial (ASTM D5311) and cyclic direct simple shear (ASTM D8296) on undisturbed or reconstituted samples to measure CSR and cyclic strength.
Liquefaction-Induced Settlement & Lateral Spreading
Post-liquefaction volumetric strain analysis using Ishihara-Yoshimine method and lateral displacement estimates per Zhang et al. (2004).
Typical parameters
Frequently asked questions
What is the typical factor of safety against liquefaction in Chandler soils?
In our tests across Chandler, the factor of safety ranges from 0.6 to 1.3 for a Mw 7.5 event, depending on depth, fines content, and SPT blow count. Loose silty sands above the water table often fall below 1.0 and require mitigation.
How much does a soil liquefaction analysis cost in Chandler?
A complete liquefaction analysis including SPT borings, lab testing, and triggering calculations typically ranges between US$2,650 and US$3,790. Final cost depends on number of borings, sample recovery method, and whether cyclic testing is needed.
Which Chandler neighborhoods have the highest liquefaction risk?
Areas near the Queen Creek Wash, along the former river channels under downtown, and subdivisions east of Arizona Avenue where the water table sits within 15 feet of the surface show the highest cyclic susceptibility. We map these zones using historic boring logs and our own SPT data.
