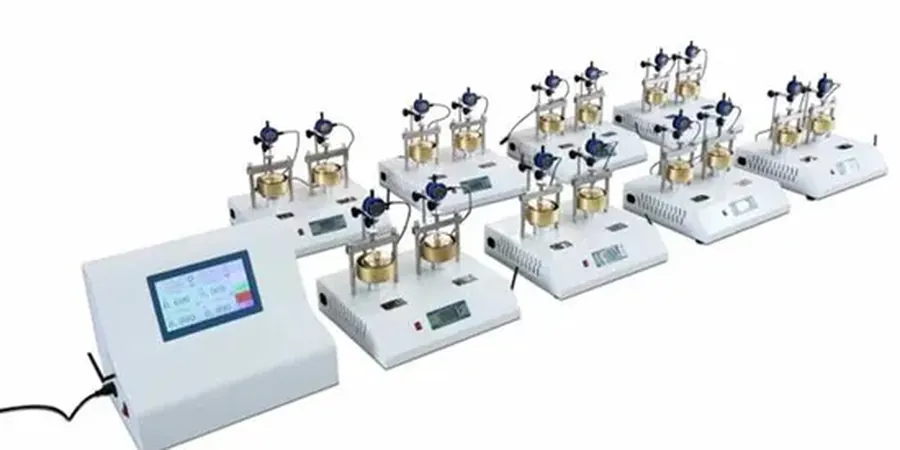

Many builders in Chandler assume the local alluvial soils are stiff enough to skip consolidation testing. That assumption often leads to differential settlement in commercial slabs and residential foundations. The clay and silt layers in the upper Santa Cruz River deposits can compress significantly under load, especially when irrigation raises the water table. Without an oedometer consolidation test, you have no way to predict total or differential settlement accurately. We run the test per ASTM D2435 using fixed-ring consolidometers with load increments up to 1600 kPa. Before starting the oedometer test, we often recommend a calicatas exploratorias to recover intact block samples from the critical clay strata. That combination gives you the actual void ratio change under expected foundation pressures.
A single oedometer test on Chandler's alluvial clay can prevent six-figure repair costs from differential settlement within the first five years.
Methodology and scope
Local considerations
IBC Chapter 18 and ASCE 7 require consolidation testing for any structure on compressible soils with a net allowable bearing pressure exceeding 2000 psf. In Chandler, the alluvial sequence can include 8 to 15 feet of medium-stiff clay under the upper sand layer. Ignoring the oedometer consolidation test means you design without knowing the magnitude of primary consolidation. We have seen parking lots and tilt-up panels crack because the design assumed zero settlement from the clay. The test costs a fraction of what one repair slab would cost. Run it before you pour concrete.
Explanatory video
Applicable standards
ASTM D2435 – Standard Test Methods for One-Dimensional Consolidation Properties of Soils, IBC 2021 Chapter 18 – Soils and Foundations, ASCE 7-22 Minimum Design Loads – Section 11.9.2 (settlement criteria)
Associated technical services
Standard Incremental Loading Oedometer Test
Full load sequence from 12 to 1600 kPa with 24-hour duration per increment. Reports include e-log p curve, Cc, Cr, σp, and Cv. Suitable for foundation settlement analysis in Chandler's clay layers.
Constant Rate of Strain (CRS) Consolidation Test
Faster alternative for low-plasticity silts. We apply a constant strain rate and back-calculate consolidation parameters. Ideal for preliminary design phases where turnaround is critical.
Swelling and Collapse Potential on Oedometer
Modified test that measures vertical swell under low load and collapse upon wetting. Essential for Chandler's arid soils that may experience volume change after irrigation or rainfall.
Typical parameters
Frequently asked questions
What is the difference between an oedometer consolidation test and a triaxial test?
The oedometer test measures vertical compression and consolidation under zero lateral strain (one-dimensional). It gives settlement magnitude and rate. A triaxial test measures shear strength under controlled confinement. Both are often needed for foundation design, but the oedometer is the standard for settlement prediction.
How much does an oedometer consolidation test cost in Chandler?
Standard incremental loading oedometer tests typically range between US$240 and US$450 per sample, depending on the number of load increments and whether swelling/collapse phases are included. We provide a firm quote after reviewing your project scope.
How long does the test take from sampling to report?
A standard 24-hour-per-increment oedometer test with 8 load steps takes about 10 to 12 business days. CRS tests can be completed in 3 to 5 days. We prioritize urgent projects in Chandler with a rush service.
What sample disturbance affects the oedometer results?
Disturbance lowers the measured preconsolidation pressure and increases the compression index. We use thin-wall tube samplers (Shelby tubes) and handle specimens with care. For sensitive clays, we recommend block samples from a test pit to preserve in-situ structure.
